Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Vật liệu: | Nhà ở Stell | Màu sắc: | Theo yêu cầu |
|---|---|---|---|
| Ổ đỡ trục: | Vòng bi không khí | ||
| Làm nổi bật: | 160000 RPM PCB khoan,0.85kw đinh khắc |
||
PRODUCT DESCRIPTION

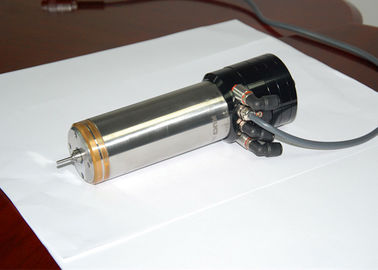

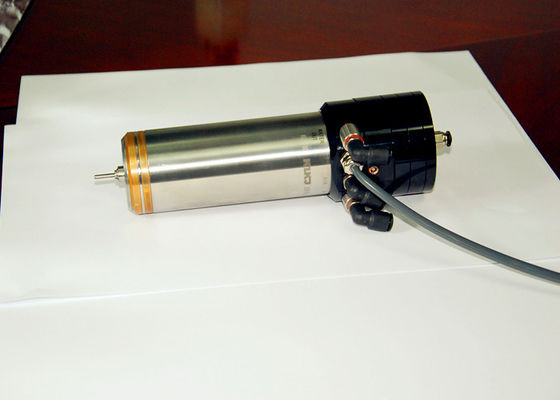

MODEL: KL-160D
NAME : AIR BEARING SPINDLE
SPEED RANGE: 20,000 - 160,000 rpm
BEARING TYPE: Air Bearing
SPINDLE WEIGHT: 4.1kg
COLLET SIZE: ø3.175
Air Pressure: 6 kgf/cm²
Motor power: 0.85KW
Coolant: Water or oil
Coolant water temperature: 20℃+2
Voltage: 60-189V
Rated. CURRENT (A): 4A
Dynamic Runout: ≤7μm
Vibration: 1.0MM/S
Temperature sensor ohms KΩ: R= 0.1±5%( AT 25℃)
TORQUE(g): ø3.175≥650g; >=150N.cm
Competitive Advantage:
LOW STATIC & DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
SUITABLE FOR PCB DRILLING INDUSTRY, COMPETIABLE
APPLICATION :
1, PRINTED CIRCUIT BOARD DRILLING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
Quick Detail:
|
MODEL |
NAME |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
|
KL-160D |
SPINDLE |
SPEED RANGE: 20,000 -160,000 rpm Ø6.35mm-0.05mm precise drilling |
Print Circuit Boad Drilling |
KLINGINBERG PLURITEC |
Air Bearing |
SPECIFICATION:
|
SPEED RANGE(RPM) |
20,000-160,000 |
|
FREQUENCY (HZ) |
334-2760 |
|
MOTOR TYPE |
THREE PHASE |
|
MOTOR OUTPUT POWER |
0.85KW |
|
TORQUE(g) |
ø3.175≥650g |
|
VOLTAGE (V) |
60-189 |
|
COLLET CLAMPING DIAMETER (mm) |
ø3.175 |
|
COOLING TEMPERATURE(°C) |
20 |
|
BEARING TYPE |
AIR BEARING |
|
AIR PRESSURE (kg/cm2) |
6 |
|
RUNOUT (μm) |
≤7.0 |
|
VIBRATION (mm/s) |
≤1.0 |
|
THREE PHASE RESISTANCE (Ω) |
1.5±0.2 |
|
COLLET LOCK TYPE |
DEAD COLLET |
|
SPINDLE WEIGHT (kg) |
Around 4.1 |
|
Rated. CURRENT (A) |
4 |
|
GRIP AIR PRESSURE (kg/cm2) |
≥2.0 |
|
RELEASE AIR PRESSURE (kg/cm2) |
≤5.0 |
